11 65 020 Removing and installing or replacing turbocharger (N57): Notes

Special tools required:

11 6 050 .

WARNING: Risk of burning!
Only perform this repair work on an engine that has cooled down.

NOTE: Read notes on TROUBLESHOOTING ON THE TURBOCHARGER .

WARNING:

For turbocharger damage:

In order to avoid subsequent damage, the following notes and test steps must always be followed: see TURBOCHARGER DAMAGE DUE TO BLOCKED OIL SUPPLY LINES and TEST STEPS IN THE EVENTING OF TURBOCHARGER DAMAGE .

Necessary preliminary tasks:

Remove ACOUSTIC COVER .
Remove front SOUND INSULATION COVERS .
Draw off A/C SYSTEM .
Remove REINFORCEMENT PLATE .
Remove right PRESSURE PIPE .

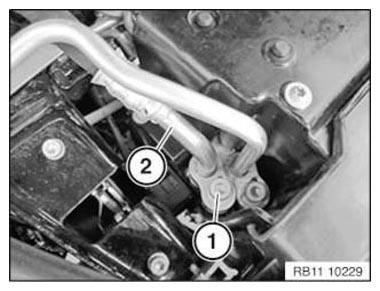

Release screws (1).

Pull the refrigerant line (2) off.

Installation note:

Replace the sealing ring.

Tightening torque 64 53 5AZ .

Fig 1: Identifying Refrigerant Line And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

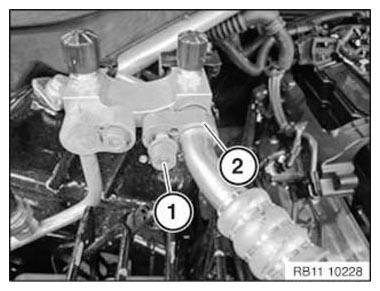

Release screws (1).

Pull the refrigerant line (2) off.

Installation note:

Replace the sealing ring.

Tightening torque 64 53 3AZ .

Fig 2: Identifying Refrigerant Line And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

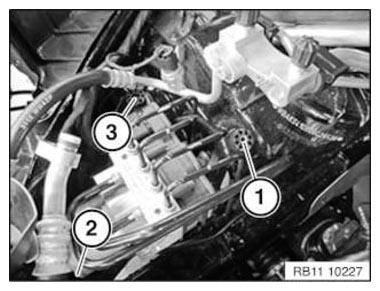

Loosen the bolt (2) on the hydraulic unit.

Unclip rubber grommets (1 and 3).

Fig 3: Identifying Hydraulic Unit Bolt And Rubber Grommets

Courtesy of BMW OF NORTH AMERICA, INC.

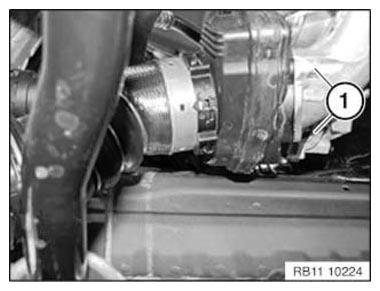

Undo bolts (1) on sound muffler.

Fig 4: Identifying Sound Muffler Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

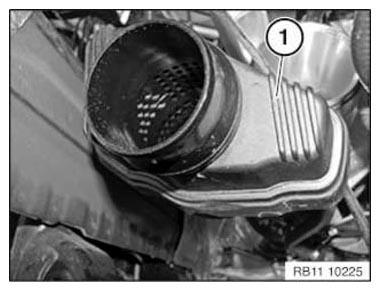

Pull sound muffler (1) forwards off turbocharger.

Fig 5: Identifying Sound Muffler

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) on actuator drive.

Release screw (2).

Unlock clip (3) in direction of arrow.

Pull off air intake hose (4) in direction of arrow.

Fig 6: Identifying Air Intake Hose, Clip, Plug Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release banjo bolt (1).

NOTE: Catch escaping engine oil in a suitable container.

Disconnect line (2).

Tightening torque 11 42 2AZ .

Installation note:

Clean sealing surfaces.

Fig 7: Identifying Banjo Bolt And Line

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten hose clamp (1).

Return line is also removed when turbocharger is removed.

If necessary, remount oil return line and replace gasket.

Fig 8: Identifying Hose Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

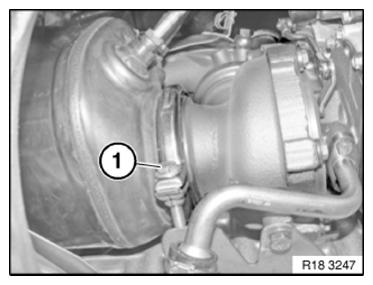

Release screw (1) of clamp between diesel particle filter and turbocharger.

Installation note:

Clamp must be replaced after removal.

Tightening torque 18 31 2AZ .

Fig 9: Identifying Clamp Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove holder (2).

Tightening torque 11 65 2AZ .

Fig 10: Identifying Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Turn oil filler neck (2) in the direction of the arrow to stop.

Remove oil filler neck (2) towards top.

Fig 11: Turning Oil Filler Neck

Courtesy of BMW OF NORTH AMERICA, INC.

Press locking hooks (1) down.

Remove hose (2) for engine ventilation.

Fig 12: Identifying Engine Ventilation Hose And Locking Hooks

Courtesy of BMW OF NORTH AMERICA, INC.

Undo screw on V-strap clamp between turbocharger and exhaust manifold.

Tightening torque: 11 65 1AZ .

Fig 13: Identifying V-Band Clamp Ends

Courtesy of BMW OF NORTH AMERICA, INC.

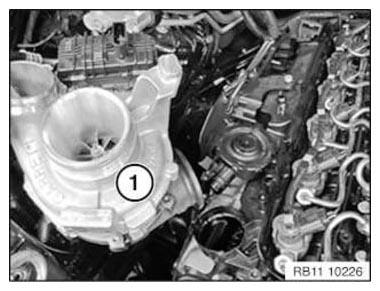

Pull hydraulic unit to the side and Maneuver out/remove turbocharger (1) upwards in position illustrated.

Fig 14: Identifying Turbocharger

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Screw connection of V-band clamp is too loose.

If you can see a gap between the ends of the V-band clamp, release and then repeat the screw connection.

Tightening torque: 11 65 1AZ .

Fig 15: Identifying Gap Between Ends Of V-Band Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Screw connection of V-band clamp is too tight.

If the ends of the V-clip are positioned under each other, release and then repeat the screw connection.

Tightening torque: 11 65 1AZ .

Fig 16: Identifying Misalignment Of V-Band Clamp Ends

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pay attention to retaining pin (1) when installing turbocharger.

Replace sealing ring (2).

Fig 17: Identifying Retaining Pin And Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace turbocharger.

Release banjo bolt (1).

Installation note:

Tightening torque 11 42 2AZ .

Replace sealing rings.

Engine oil line must run obliquely along the housing (see illustration).

Fig 18: Identifying Proper Installation Position Of Engine Oil Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Observe diagnosis instructions.
