51 24 400 Removing and installing/replacing electric spindle drive for rear lid on left or right
- Rattling when opening and closing
- Drive not functioning
- Drive is blocked or sluggish
- No longer closes or opens
Or if incorrect operation is suspected:
- Rear lid was closed with excessive exertion of force
- Bent, broken piston rod
- Broken ball head
The inner compression spring must be secured against sudden unintended release.
Risk of damage to spindle drive!
If spindle drive has been electrically disabled (e.g. connector unplugged) the tailgate must only be moved slowly by hand.
Before starting work, read off and make a note of the boot lid opening angle setting (refer to vehicle owner's manual).
Adjust tailgate to maximum opening angle. The spindle drive may only be removed or installed when the tailgate is open to the maximum.
Support rear lid in fully opened position with suitable apparatus.

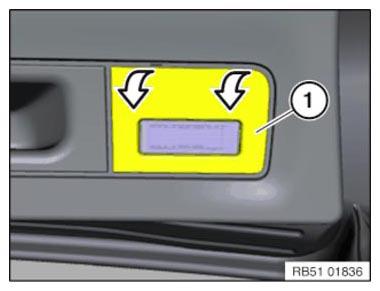

Unclip the trim (1) in the direction of arrow.
Unlock associated plug connection and disconnect.

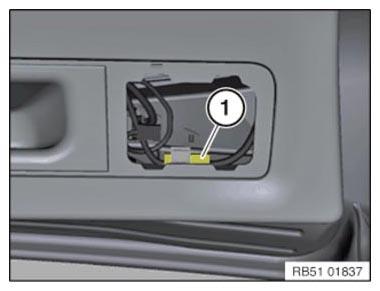

Unfasten plug connection (1) and disconnect.
Detach grommet (1) and feed cable out of boot lid.

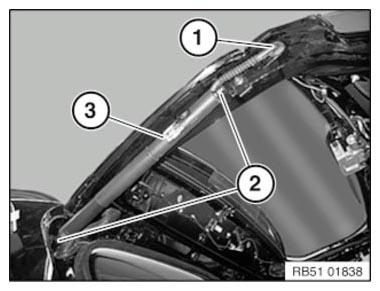

Detach BALL SOCKETS (2) and remove spindle drive motor (3).
Electric spindle drive for rear lid is under mechanical spring bias!
The component must be secured against falling down.
Concluding tasks:
Initialize automatic operation of tailgate using the service function in the diagnosis system.
Selection via:
- Body
- Automatic tailgate operation
- Power tailgate initialization
Check the opening angle setting of the tailgate and restore the customer setting, if necessary.
