51 43 230 Removing and installing/replacing trim on C-pillar at bottom left or right (3rd row of seats)

Necessary preliminary tasks:

Slide cover (1) upwards.

Release screw (2) underneath it.

Installation note:

Replace screw (2).

Tightening torque 72 11 21AZ .

Fig 1: Identifying Cover And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

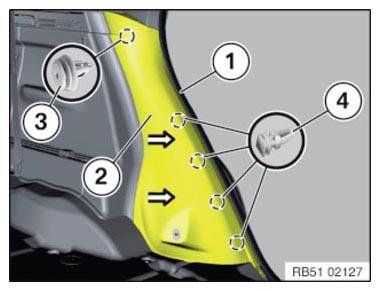

Pull off edge protection (1) in the area of trim (2).

Detach cover (2) at clip (3).

Release trim (2) from clips (4) in direction of arrow and remove.

Fig 2: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, replace faulty clips (1).

Guides (2) must not be damaged.

Fig 3: Identifying Clips And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
