51 49 017 Removing and installing/replacing trim panel for rear window frame on (inside) left or right

Necessary preliminary tasks:

Detach trim panel (1) from clamps (2) towards inside.

Installation note:

If necessary, replace faulty clamps (2).

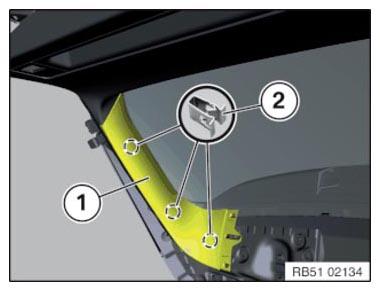

Fig 1: Detaching Trim Panel From Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tabs (1) on panel (2) must not be damaged.

Fig 2: Identifying Tabs On Panel

Courtesy of BMW OF NORTH AMERICA, INC.
