61 31 172 Removing and installing/replacing switch for electromechanical parking brake

Necessary preliminary tasks:

• Remove GEAR SELECTOR SWITCH COVER

Release screws (1).

Tightening torque 61 31 7AZ .

Remove switch for electromechanical parking brake (2) from cover for gear selector switch (3).

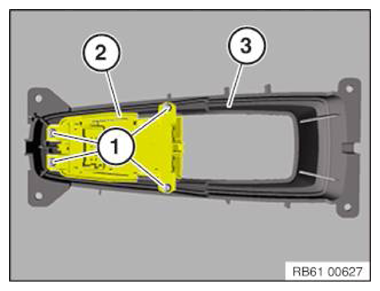

Fig 1: Identifying Electromechanical Parking Brake Switch, Gear Selector Switch Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
