51 45 390 Remove and install/replace the KOMBI cover

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

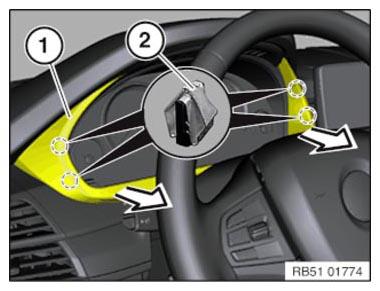

Release cover (1) from clips (2) by pressing inwards.

Fig 1: Releasing Cover From Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

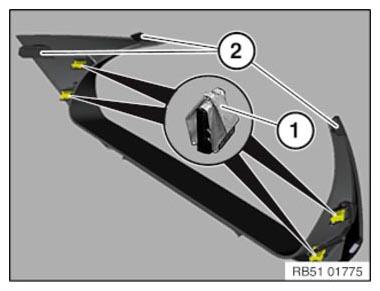

Clips (1) and guides (2) must not be damaged or missing.

Fig 2: Identifying Clips And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
