51 45 372 Removing and installing/replacing decorative strip on dashboard on driver's side on left

Special tools required:

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Carefully detach decorative strip (1) from clips (2) using special tool 00 9 325 and remove.

Installation note:

Replace defective retainers (2).

Make sure clips correctly fitted on decorative strip (2).

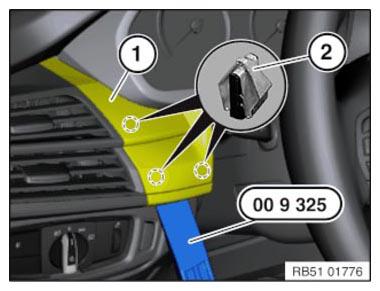

Fig 1: Detaching Decorative Strip From Clips Using Special Tool (00 9 325)
G11112263Courtesy of BMW OF NORTH AMERICA, INC.
