51 21 280 Removing and installing/replacing door stop on left or right front door

Necessary preliminary tasks:

Close door windows
Remove SOUND INSULATION IN FRONT AREA ONLY

NOTE: Operations are shown for F10 as an example.

After disengaging door stop, use suitable means of preventing door from opening past its maximum permissible opening angle (risk of damaging paintwork or bodywork).

NOTE: Secure front door against falling closed.

Lever out seal (1).

Release screw (2).

Tightening torque 51 21 3AZ .

Release screws (3).

Tightening torque 51 21 5AZ .

Installation note:

Fig 1: Identifying Seal And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Seal (1) must not be damaged.

Remove door stop (1) via aperture (2).

Fig 2: Removing Door Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Following parts of door retainer (3) must not be damaged:

Hinge
Thread

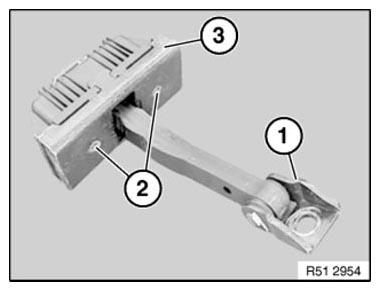

Fig 3: Identifying Hinge, Thread And Door Retainer

Courtesy of BMW OF NORTH AMERICA, INC.
