51 21 180 Removing and installing/replacing cover on outside door handle

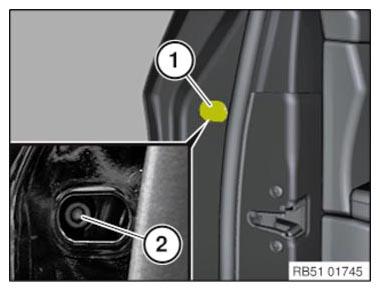

Lever out trim (1) and release screw underneath (2).

Installation note:

Replace faulty cover (1).

Fig 1: Identifying Cover And Screw Underneath

Courtesy of BMW OF NORTH AMERICA, INC.

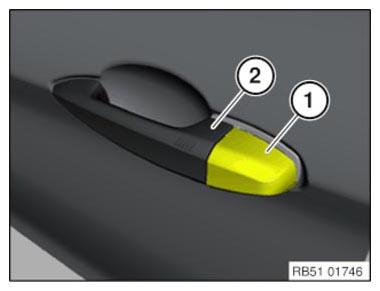

Pull off cover (1) with outer door handle (2) opened slightly.

Fig 2: Identifying Cover And Outer Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

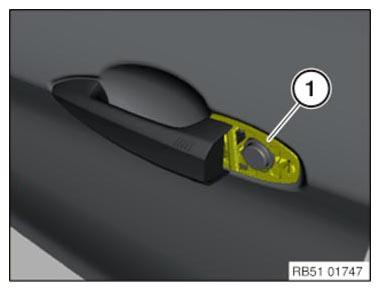

Ensure gasket (1) is seated correctly.

Fig 3: Identifying Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

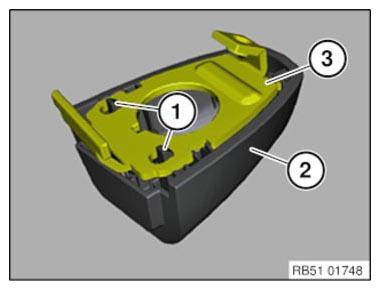

Latch mechanisms (1) of cover (2) must not be damaged.

Replacement:

Remove cover (2) from retaining plate (3).

Fig 4: Identifying Latch Mechanisms Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.
