51 21 125 Removing and installing/replacing support for left or right outer door handle with lock barrel

Necessary preliminary tasks:

• Remove DOOR LOCK

Unhook locking rod (1).

Lift tab (2) over catch and turn approx. 90° in direction of arrow.

Disconnect Bowden cable (3).

Installation note:

Make sure cable is correctly located.

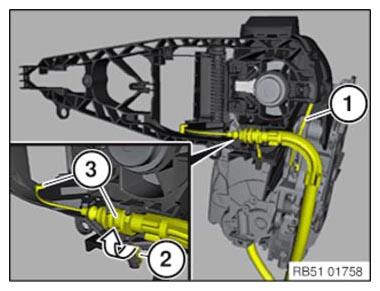

Fig 1: Disconnecting Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remount LOCK BARREL .
