51 11 185 Removing and refitting/replacing (side) ornamental grille in bumper panel

Necessary preliminary tasks:

Release latch mechanisms (1) and carefully remove air duct (2).

Fig 1: Identifying Air Duct And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten catches and remove trim from outside.

Installation note:

Latch mechanisms must not be damaged or missing.

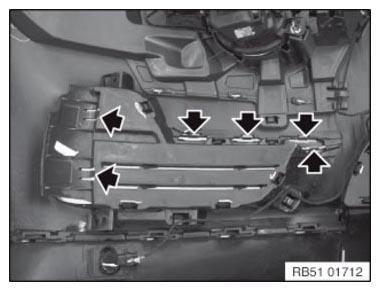

Fig 2: Locating Ornamental Grille Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out cable (1).

Unfasten catches and remove ornamental grille (2).

Installation note:

Latch mechanisms must not be damaged or missing.

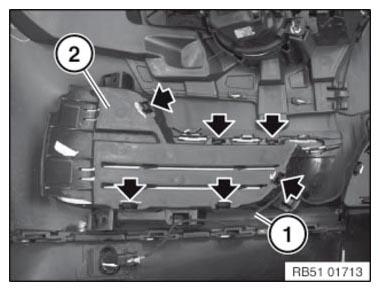

Fig 3: Locating Ornamental Grille Catches

Courtesy of BMW OF NORTH AMERICA, INC.
