51 11 158 Replacing base plate for number/license plate
Only use the vehicle-specific number plate baseplate.
The installation of other license plate baseplates is not permissible.
Refer to procedure for LICENSE PLATE ATTACHMENT AT FRONT .
The number plate must be precisely mounted on the number plate baseplate.
If a number plate baseplate is not offered for the corresponding national-market version, the number plate must be screwed directly onto the bumper using a drilling template.
Incorrect assembly leads to a malfunction of the sensors of the driver assist systems.

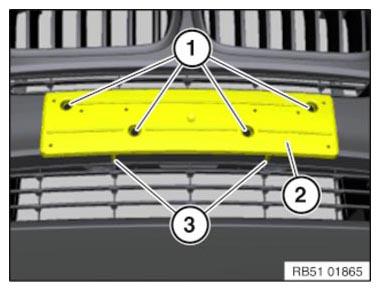

Release screws (1).
Remove holder (2) towards front.
Installation note:
Position the support (2) above the guides (3).
