51 47 105 Removing and installing/replacing trim on D-pillar at bottom left or right

Unclip cover (1) in direction of arrow.

Installation note:

Catches on trim (1) must not be damaged.

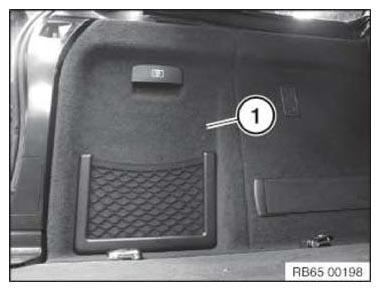

Fig 1: Identifying Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cap (1).

Fig 2: Identifying Left Luggage Compartment Trim Panel Flap

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Detach trim (2) at clip (3) and remove inwards.

Installation note:

Replace the faulty clip (3).

Fig 3: Identifying Trim, Clip And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
