Fuse And Relay Location -- (X5 F15 & X5 M F85)
>>
Fuse And Relay Location (X5 F15 & X5 M F85)
>>
Z7 Power distribution box, front
Z7 Power distribution box, front

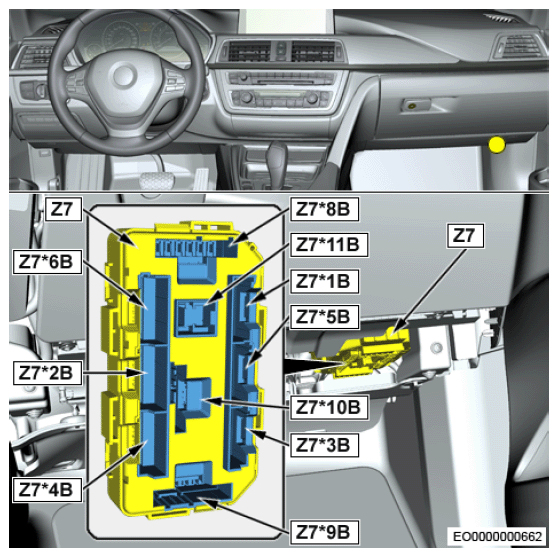

Fig 1: Z7 Power Distribution Box, Front Fuse/Relay ID'S Location (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

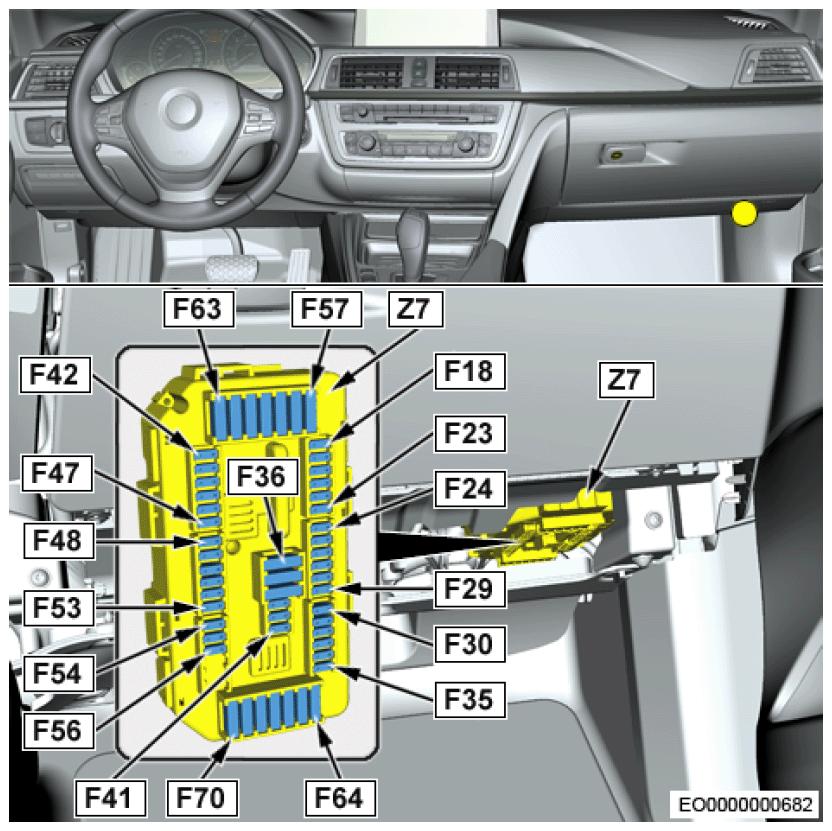

Fig 2: Z7 Power Distribution Box, Front Fuse/Relay ID'S Location (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
