63 31 080 Removing and installing/replacing luggage compartment light

IMPORTANT: Follow notes for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .

Lift luggage compartment light (1) out of tailgate trim panel (2) in direction of arrow.

Disconnect associated plug connection and remove luggage compartment light (1).

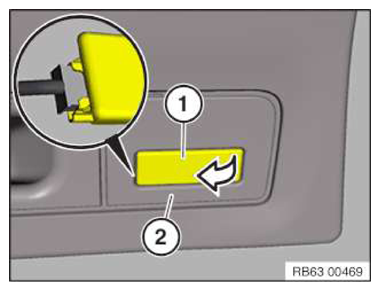

Fig 1: Removing Luggage Compartment Light

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Take note of the BULB TYPE , swap over BULB if necessary.
