63 31 023 Removing and installing/replacing footwell light (floor trim, rear)

Special tools required:

• 64 1 020

Lever out footwell light (1) using special tool 64 1 020 in direction of arrow from holder frame of footwell light (2).

Disconnect plug connection (3) and remove footwell light (1).

Replacement:

Note BULB TYPE and remount the BULB  if applicable.

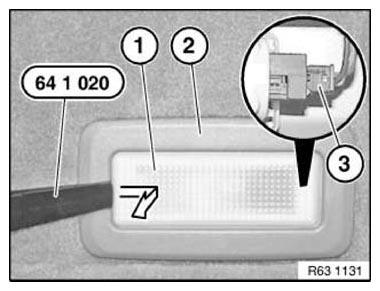

Fig 1: Removing Footwell Light

Courtesy of BMW OF NORTH AMERICA, INC.
