63 25 000 Removing and installing/replacing additional brake light

Necessary preliminary tasks:

• Remove REAR SPOILER

Slacken both screws (1).

Tightening torque 63 25 2AZ .

Thread additional brake light (2) with hose pipe out of rear spoiler.

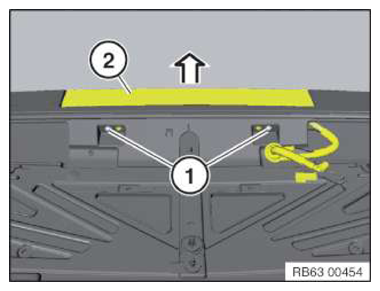

Fig 1: Removing Additional Brake Light

Courtesy of BMW OF NORTH AMERICA, INC.
