51 34... Removing and installing/replacing trim for window guide of left or right rear door

Necessary preliminary tasks:

• Remove inner WINDOW CAVITY COVER STRIP
• Remove COVER FROM WINDOW FRAME

Pull out rubber guide (1) on trim (2).

Installation note:

Moisten rubber window seal (1) with water before fitting.

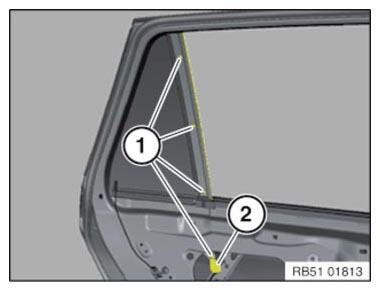

Fig 1: Identifying Rubber Guide On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Detach SOUND INSULATION  in area of bottom screw (1).

Release screws (1).

Feed out trim (2).

Fig 2: Identifying Trim And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
