51 34 191 Replacing left or right fixed door window in rear window frame
Special tools required:
- Refer to GENERAL PROCEDURE for dismantling/installation of affixed window glass.
Removal is carried out using the SPIDER .
The following new parts/CONSUMABLES are required (sourcing reference BMW Parts Department).
| Material | Quantity |
|---|---|
| Door window glass (on replacement) | 1 |
| Small repair kit | 1 |
Necessary preliminary tasks:
- Remove COVER FOR WINDOW GUIDE
- Remove TRIM ON REAR WINDOW FRAME
- Remove rubber window seal for door window glass in area of fixed door window glass
Remove clamps (1).
Installation note:
Replace faulty clamps (1).

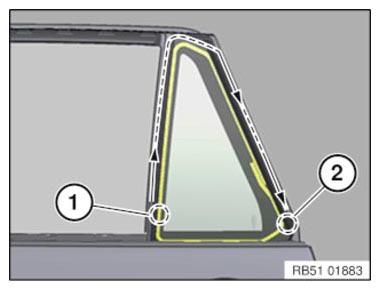

Slide nylon string in area (1) through adhesive bead.
Feed nylon string to rear of spacer of door window glass.
Cut through adhesive bead in direction of arrow up to area (2).

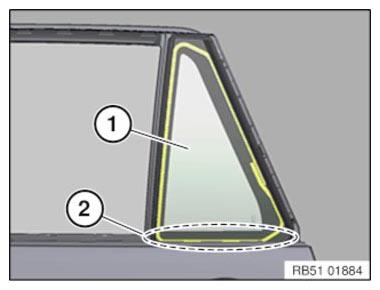

Pull door window glass (1) outward slightly and cut through adhesive bead in area (2) from inside with knife.
Remove door window glass (1).
Remove remnants from frame in the areas (1).
Overview for taping of door window
Position (1) corresponds to bead joint.
| Cut | A - A |
|---|---|
| a [mm] = Position adhesive bead | 2 ±1/along window frame contour |
| b [mm] = Width adhesive bead | 8 ±1 |
| h [mm] = Height adhesive bead | 15 ±1 |
Replacement:
Carefully insert door window (1) with special tool 51 3 220 at bottom first, align sideways and insert latch mechanisms (2) in mountings (3).
Assemble the door immediately after installation of the door window.
When refitting:
First carefully insert door window glass at bottom with special tool 51 3 220 , then align to door outer skin.

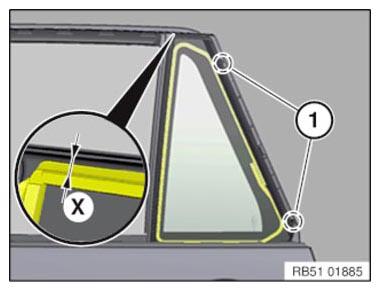

Spacers in area (1) must be positioned against door outer skin.
Top of PVC frame of door window glass must have dimension (x) to door outer skin.
(x) = 5.5 mm
Secure door window glass with yellow plastic adhesive tape.
