51 49 002 Removing and installing/replacing (upper) panel for rear window frame

Release panel (1) at clips (2) and remove.

Installation note:

If necessary, replace faulty clips (2).

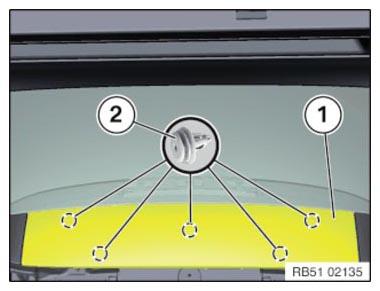

Fig 1: Identifying Panel And Clips
G11112403Courtesy of BMW OF NORTH AMERICA, INC.
