51 12 830 Removing and installing/replacing guide for rear center bumper panel

Necessary preliminary tasks:

If necessary, unlock plug connection (1) and disconnect.

Unscrew nuts (2).

Tightening torque 51 12 4AZ .

Release guide (3) from latch mechanism (4) and remove.

Replacement (depending on version):

Remount SENSOR (5) for lane change warning.

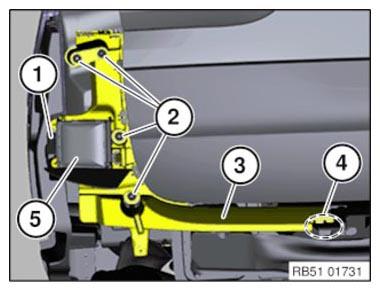

Fig 1: Identifying Latch Mechanism, Guide, Plug Connection, And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms of guide must not be damaged or missing.

Replace faulty sheet metal nuts.

Fig 2: Locating Guide Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.
