51 16 405 Removing and installing/replacing roller sunblind on side window of left or right rear door

Special tools required:

• 00 9 327

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary work:

• Remove REAR DOOR TRIM PANEL

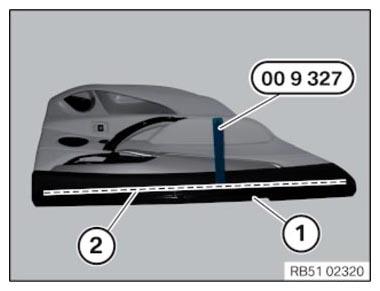

Carefully release trim for roller sunblind (1) in area of dashed line (2) with special tool 00 9 327 , do not remove.

Fig 1: Releasing Roller Sunblind Trim Area Of Dashed Line With Special Tool (00 9 327)

Courtesy of BMW OF NORTH AMERICA, INC.

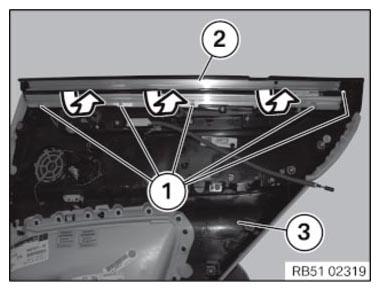

Release screws (1).

Detach roller sunblind (2) from door trim panel (3) in direction of arrow and remove.

Fig 2: Detaching Roller Sunblind From Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
