51 45... Removing and installing/replacing side cover on the dashboard

Special tools required:

Release edge protection (1) in the area of the cover (2).

Unclip cover (2) from instrument trim panel in direction of arrow using special tool 00 9 340 .

Version with Isofix system:

Disconnect plug connection for front passenger airbag switch

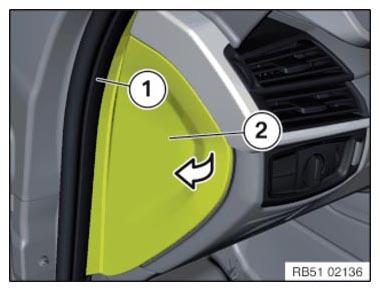

Fig 1: Unclipping Cover Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Retaining clips (1) of cover (2) must not be damaged.

Fig 2: Identifying Retaining Clips Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.
