51 23 131 Adjusting left or right striker on engine compartment lid

Adjusting striker is described in ADJUSTING ENGINE COMPARTMENT LID

Undo screws (3) and remove striker (2).

Tightening torque 51 23 1AZ .

Disconnect Bowden cable (1).

Installation note:

Adjust ENGINE COMPARTMENT LID .

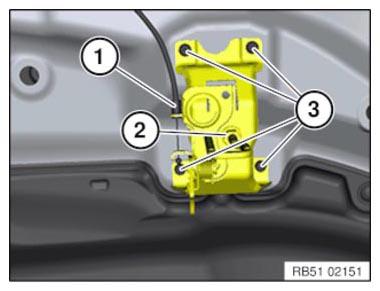

Fig 1: Identifying Bowden Cable, Striker And Screws
G11111871Courtesy of BMW OF NORTH AMERICA, INC.
