51 71 360 Removing and installing/replacing seal for tailgate

Fold up cover (1).

Remove gasket (2).

Installation note:

Make sure that the gasket impact is at the bottom center.

Make sure that the gasket lies correctly on the adjacent trim panel components.

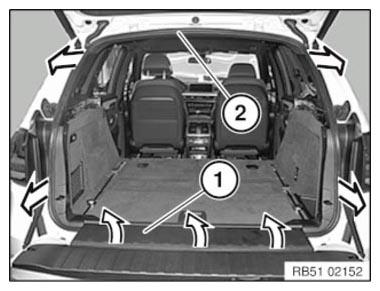

Fig 1: Folding Tailgate Cover

Courtesy of BMW OF NORTH AMERICA, INC.
