51 11 156 Removing and installing front bumper panel

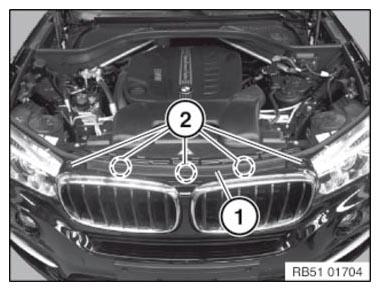

Remove seal (1) and unscrew bolts (2).

Tightening torque 51 11 1AZ .

Fig 1: Identifying Front Bumper Panel Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

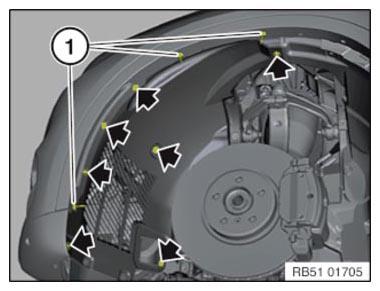

Remove rivet (1) and marked screws.

Installation note:

Fit new rivet (1).

NOTE: Carry out work on the right side in the same way as for the left side illustrated here.

Fig 2: Locating Rivet And Marked Screws

Courtesy of BMW OF NORTH AMERICA, INC.

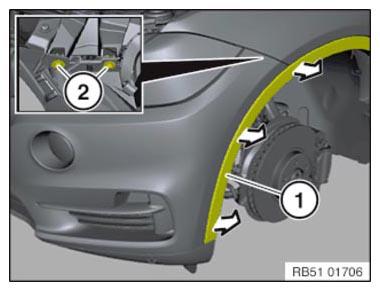

Release wheel arch trim (1) from catches in area of bumper trim panel.

Partially release wheel arch cover and fold it aside.

Unfasten screws (2).

Tightening torque 51 11 2AZ .

Detach bumper trim panel from side panel at the side.

NOTE: Carry out work on the right side in the same way as for the left side illustrated here.

Fig 3: Releasing Wheel Arch Trim From Catches In Area Of Bumper Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 11 3AZ .

Fig 4: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

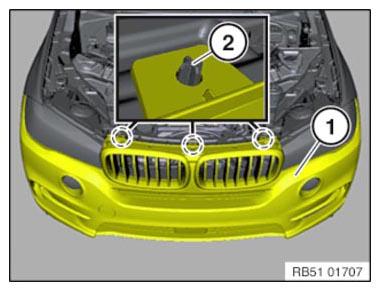

Lift bumper trim panel (1) over guide (2).

Pull bumper panel (1) slightly towards the front with aid of a 2nd person.

Unfasten and disconnect all electrical connectors and, if necessary, headlight washer system connection.

Remove the bumper panel (1).

Fig 5: Identifying Bumper Trim Panel And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
