66 53 120 Removing and installing/replacing front camera
Special tools required:
Necessary preliminary tasks:
- Remove FRONT BUMPER PANEL
Version A:
Attention!
Risk of damage!

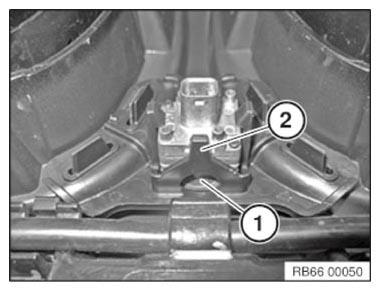

Diaphragm (1) must not come into contact with latch mechanism (2) during removal and installation.
Diaphragm (1) must not come into contact with grease (e.g. contact with skin).
If necessary, unlock and disconnect plug connection for front camera.

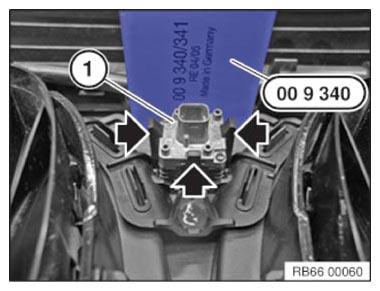

Insert special tool 00 9 340 between front camera (1) and latch mechanism thus protecting diaphragm.
Unlock latch mechanisms and remove front camera (1).
Installation note:
Protect diaphragm with special tool 00 9 340 .
Make sure latch mechanisms are correctly fitted.
Version B:
Attention!
Risk of damage!

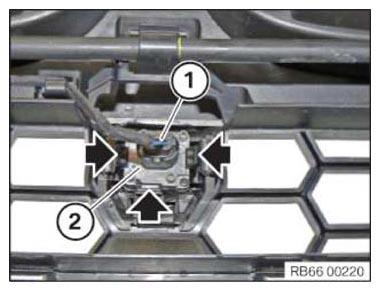

Diaphragm (2) must not come into contact with latch mechanism of the front camera during removal and installation.
Diaphragm must not come into contact with grease (e.g. contact with skin.)
Unlock and disconnect the connector (1).
Unlock latches at marked points.
Remove front camera.
Installation note:
Make sure latch mechanisms are correctly fitted.
After re-assembly:
Carry out the service function:
- Driver assistance
- All-round vision camera
- Calibration and teaching in for all-round vision camera
Replacement:
Carry out PROGRAMMING/ENCODING .
Carry out the service function:
- Driver assistance
- All-round vision camera
- All-round vision camera programming
