66 54 010 Removing and installing complete night vision camera

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

Remove camera including holder (3).

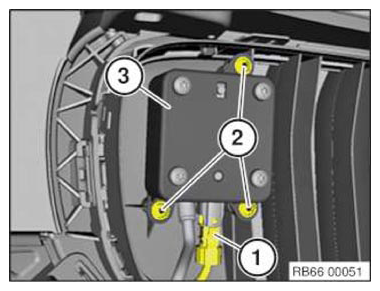

Fig 1: Identifying Camera Holder, Screws And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
