84 31 550 Removing and installing/replacing microphone on the driver's side

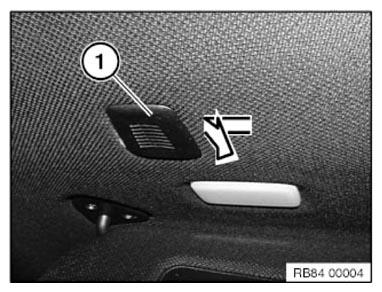

Lever out microphone (1) in direction of arrow.

Fig 1: Removing Microphone

Courtesy of BMW OF NORTH AMERICA, INC.

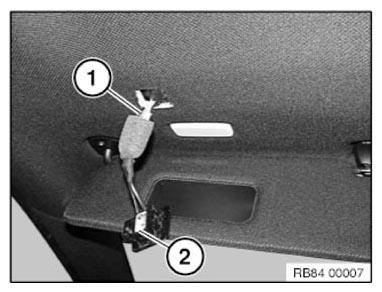

Disconnect plug connection (1) and remove microphone (2).

Fig 2: Identifying Microphone Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release catch (1) and remove microphone (2) from trim (3).

Fig 3: Removing Microphone From Trim

Courtesy of BMW OF NORTH AMERICA, INC.
