22 11 100 Replacing right engine support arm (N55)

Necessary preliminary tasks:

• Secure ENGINE in installation position.
• Remove REINFORCEMENT PLATE .
• Remove the CATALYTIC CONVERTER .

Release bolts (1) and remove engine support arm.

Tightening torque 22 11 3AZ .

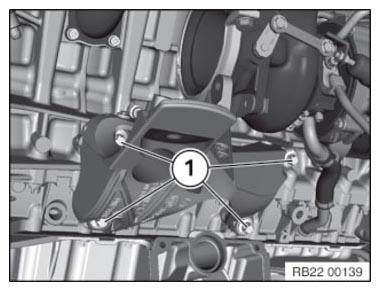

Fig 1: Identifying Engine Support Arm Bolts

Courtesy of BMW OF NORTH AMERICA, INC.
