12 51 001 Replacing wiring harness section for engine (N55)
Attention!
Aluminium screws/bolts must be replaced each time they are released .
Aluminium screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminium screws/bolts are not magnetic .
Jointing torque and angle of rotation must be observed without fail (risk of damage) .
Necessary preliminary tasks:
- Read out the fault memory of the DME control unit.
- Switch off ignition.
- Disconnect BATTERY EARTH LEAD .
- Remove intake PLENUM .
- Partially detach WIRING HARNESS for injectors and ignition coils.
- Remove CLEAN AIR PIPE .
- Remove FAN COWL .
- Remove front UNDERBODY PROTECTION .
- Remove rear UNDERBODY PROTECTION .
- Remove MICROFILTER HOUSING .
Lever out expanding rivet.
Remove gasket (1).
Unfasten screws (2).
Feed out partition wall (3) and remove.
Lever out expanding rivet.
Loosen locks in direction of arrow.
Feed out fresh-air duct (1) and remove.
Unlock and pull off all connectors from the power distribution box (1).
Do not remove power distribution box.

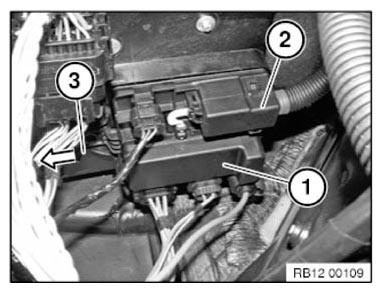

Release screws and remove retaining bracket (1).
Unlock upper section (2) of partition seal in direction of arrow and remove.
Release grommets (3) for wiring harnesses from lower section of partition seal and from electronics box.
Installation note:
Make sure grommets are is correctly seated (watertightness).
Unlock all connectors (1) from control unit and disconnect.
Installation note:
Check connector is fitted correctly (watertightness).
Release screws (1) below cable channel (2).
Replace aluminium screws.
Tightening torque 13 53 10AZ .
Release screws (1).
Tightening torque 12 90 4AZ .
Release cable channel (2).
Installation note:
Reconnect the earth connection.
Replace aluminium screws.
| Unlock and disconnect following connectors and lines | |
| Unlock connector on charging pressure sensor and disconnect | |
| Unlock connector on hot film air mass meter and disconnect | |
| Pull off and disconnect the connector from the pressure sensor on the intake plenum. | |
| Unlock connector on oxygen sensor and disconnect | |
| Unlock connector on monitoring sensor and disconnect | |
| Unlock connector on pressure converter and disconnect | |
| Unlock connector on rail pressure sensor and disconnect | |
| Unlock connector on tank vent valve and disconnect | |
| Unlock connector on starter motor and disconnect | |
| Unlock connector on the knock sensors and disconnect | |
| Unlock connector on oil temperature sensor and disconnect | |
| Unlock connector on fuel low-pressure sensor and disconnect | |
| Unlock connector on throttle body and disconnect | |
| Unlock connector on high pressure pump and disconnect | |
| Unlock connector on alternator and disconnect | |
| Unlock connector on air conditioning compressor and disconnect | |
| Unlock connector on oil level sensor and disconnect | |
| Unlock connector on crankshaft sensor and disconnect | |
| Unlock connector on heating element for air duct and disconnect | |
| Unlock connector on coolant thermostat and disconnect | |
| Unlock connector on hydraulic valve and disconnect | |
| Unlock connector on the coolant pump and disconnect | |
| Unlock connector on exhaust turbocharger and disconnect | |
| Unlock and pull off the connector from both the solenoid valves for camshaft adjustment | |
| Release earth cable on crankcase lower section Tightening torque 12 90 2AZ . |
|
| Release earth cable at rear of cylinder head Tightening torque 12 90 3AZ . |
|
| Unlock connector on intake camshaft pulse sensor and disconnect | |
| Unlock connector on exhaust camshaft pulse sensor and disconnect | |
| Unlock connector on oil pressure switch and disconnect | |
| Unlock connector on switching motor for eccentric shaft and disconnect |
Release wiring harness if necessary from existing clips and clamps.
Feed out wiring harness and remove.
Installation note:
Check the wiring harness installation arrangement.
Check that the plug connections are correctly fitted.
Check stored error/fault messages.
Delete the fault memory.
