11 53 082 Removing and installing/replacing coolant feed line (PHEV)

WARNING: High-voltage system - danger to life

Removal:

Release screw (1).

Fig 1: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the coolant line (1) in direction of arrow.

Fig 2: Removing Vent Line

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

Replace O-ring.

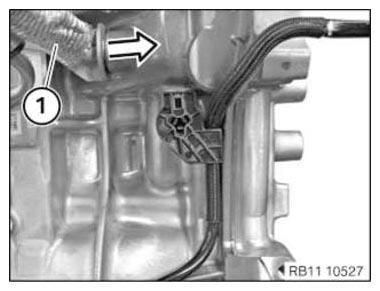

Install coolant line (1) in direction of arrow.

Fig 3: Installing Coolant Line

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1).

Tightening torque: 11 53 3AZ .

Fig 4: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.
