11 78 540 Replacing left monitoring sensor (N63)

Special tools required:

11 7 020 .

WARNING: Risk of burning!
Only perform repair work after engine has cooled down.

Necessary preliminary tasks:

Check function of DME control unit.
Switch off ignition.
Remove ACOUSTIC COVER .
Remove HOLDER for engine wiring harness.

Overview:

Monitoring sensor, right
Monitoring sensor, left
Control sensor, left
Control sensor, right

Fig 1: Identifying Monitoring Sensors And Control Sensors

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip plug (1) from holder.

Unlock and release plug connection.

Unclip the cable from the holder (2).

Feed out cable.

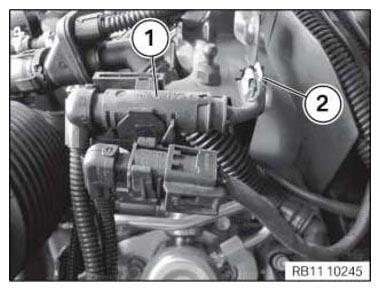

Fig 2: Identifying Plug And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Release retaining clip (1).

Remove heat shield wire ring (2) over oxygen sensor.

Fig 3: Identifying Heat Shield Wire Ring And Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Release monitoring sensor (1) with special tool 11 7 020 reversible ratchet (2).

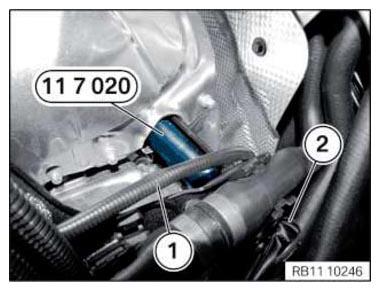

Fig 4: Releasing Monitoring Sensor With Special Tool (11 7 020)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The threads of new oxygen control/monitoring sensors are already coated with NEVER-SEEZ COMPOUND 4.3 .

If a lambda control/monitoring sensor is to be reused, apply a thin and even coating of NEVER-SEEZ compound to the thread only.

The part of the lambda control/monitoring sensor which projects into the exhaust branch (sensor ceramics) must not be cleaned and not coated with lubricant.

Fasten monitoring sensor (1) with special tool 11 7 020 .

Tightening torque 11 78 1AZ .

Fig 5: Fastening Monitoring Sensor With Special Tool (11 7 020)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check function of DME control unit.

Pay attention to cable routing of monitor sensor.
