11 78 530 Replacing left control sensor (N63)

Special tools required:

11 7 020 .

WARNING: Risk of burning!
Only perform repair work after engine has cooled down.

Necessary preliminary tasks:

Check function of DME.
Switch off ignition.
Remove ACOUSTIC COVER .
Remove HOLDER for engine wiring harness.

Unclip connector (1) for control sensor out of holder and release plug connection.

Feed out cable (2) up to sensor

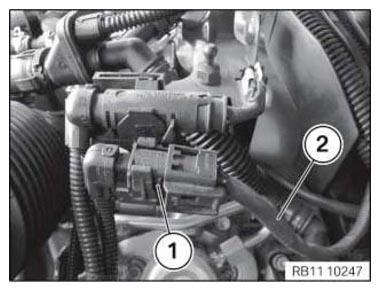

Fig 1: Identifying Control Sensor Connector And Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Release control sensor with special tool 11 7 020 .

Fig 2: Removing/Installing Control Sensor Using Special Tool 11 7 020

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The threads of new oxygen control/monitoring sensors are already coated with 4.2 NEVER SEEZ COMPOUND .

If a lambda control/monitoring sensor is to be reused, apply a thin and even coating of Never Seez Compound to the thread only.

The part of the lambda control/monitoring sensor which projects into the exhaust branch (sensor ceramics) must not be cleaned and not coated with lubricant.

Secure control sensor with special tool 11 7 020 and a torque wrench.

Tightening torque 11 78 1AZ .
