17 11 000 Removing and installing radiator (N63)
WARNING:
Risk of scalding!
Only perform this repair work after engine has cooled down.
Only perform this repair work after engine has cooled down.
IMPORTANT:
Wear safety goggles and protective gloves.
Necessary preliminary tasks:
- Follow notes for CARRYING OUT REPAIR WORK ON THE COOLING SYSTEM .
- Remove FAN COWL .
- Drain COOLANT .
- Unlock and detach coolant hoses on radiator.

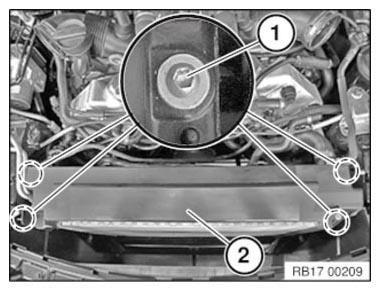

Release screws (1).
Tightening torque 17 10 5AZ .
Remove cover (2).

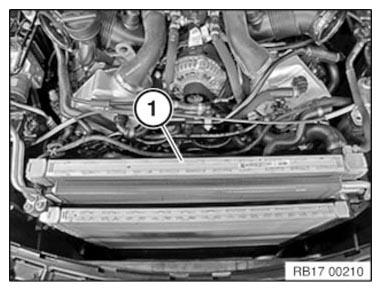

Remove radiator (1) towards top.
