11 53 086 Removing and installing/replacing coolant return line (PHEV)

WARNING: High-voltage system - danger to life

Removal:

Release screw (1).

Pull off return line.

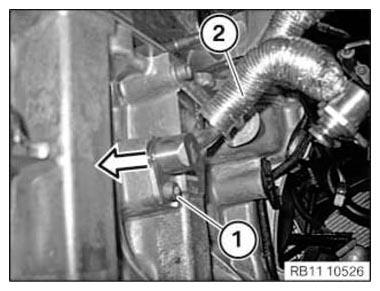

Fig 1: Identifying Coolant Return Line And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

Replace O-ring.

Mount return line.

Tighten screw (1).

Tightening torque: 11 53 7AZ .

Fig 2: Installing Coolant Return Line

Courtesy of BMW OF NORTH AMERICA, INC.
