11 61 365 Removing and installing/replacing left-hand charge air line (PHEV)

WARNING: High-voltage system - danger to life

Observe SAFETY INFORMATION for handling electric vehicles.

IMPORTANT: In the event of a leak at the pressure pipe, there is a risk of damage to the turbocharger.

Necessary preliminary tasks:

Removal:

Unlocked
Locked

Fig 1: Identifying Clamp In Locked And Unlocked Positions

G09846240

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Unlock and detach vacuum line (2).

Unlock snap fastener (3).

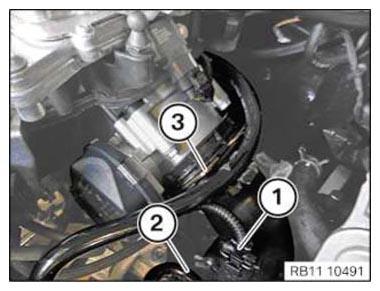

Fig 2: Identifying Plug Connection, Vacuum Line, And Snap Fastener

G11102110

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock snap fastener (1) and pull charge-air line from charge air cooler.

Slide charge air line towards rear and feed out upwards.

Fig 3: Identifying Snap Fastener

G09945342

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

IMPORTANT: In the event of a leak at the pressure pipe, there is a risk of damage to the turbocharger.

Check sealing lip (1) for damage.

Fig 4: Locating Sealing Lip

G06853140

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If sealing lip (1) is damaged, the gasket must be replaced.

Feed in charge air line and slide onto charge air cooler.

The snap fastener (1) must latch audibly into place.

Fig 5: Identifying Snap Fastener

G09945342

Courtesy of BMW OF NORTH AMERICA, INC.

Unlocked
Locked

Installation note:

Ensure retaining clip is seated correctly.

Lock must engage.

Fig 6: Identifying Clamp In Locked And Unlocked Positions

G09846240

Courtesy of BMW OF NORTH AMERICA, INC.

Slide charge air line onto throttle valve.

The snap fastener (3) must latch audibly into place.

Connect vacuum line (2).

Attach plug connection (1).

Fig 7: Identifying Plug Connection, Vacuum Line, And Snap Fastener

G11102110

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check differentiated air intake system for tightness.
