11 66 521 Checking function of vacuum system (N63)

Special tools required:

81 31 2 357 800 (81 38 2 201 924)
0 426 464 .

NOTE:

Sequence of the diagnosis instructions in the ISID:

Connect Integrated Measurement Interface Box (IMIB) to the ISID.

Depending on the fault pattern, the order of operations in the repair instructions may be different from the order of operations in the ISID.

Carry out procedure to check the vacuum system.

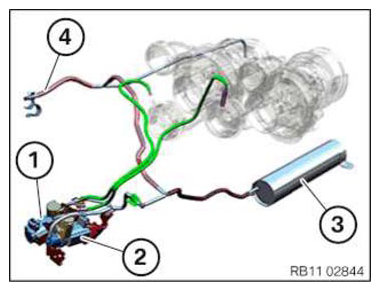

Pressure converter (1), cylinders 1 to 4 (color black).

Pressure converter (2), cylinders 5 to 8 (color black).

Panel vacuum reservoir (3).

Vacuum line junction (4) to the exhaust flaps.

Fig 1: Identifying Pressure Converters, Vacuum Reservoir And Vacuum Line Junction

Courtesy of BMW OF NORTH AMERICA, INC.

Use standard disconnection tools to disconnect the coolant hoses or vacuum lines.

Fig 2: Identifying Disconnection Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Check suction effect of vacuum pump.

Pull vacuum line (1) off vacuum pump (2).

Attach special tool 81 31 2 357 800 (81 38 2 201 924) and connect to the Integrated Measurement Interface Box (IMIB).

Follow diagnosis instruction.

Fig 3: Checking Suction Effect Of Vacuum Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Check vacuum system for leaks.

Disconnect vacuum line (2) and (3) to exhaust flap.

Connect special tool 81 31 2 357 800 (81 38 2 201 924) to a T-connecting piece and a vacuum hose (1).

Follow diagnosis instruction.

Fig 4: Connecting Special Tool (2 201 924) To T-Connecting Piece And Vacuum Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Connect Integrated Measurement Interface Box (IMIB 2) to the ISID.

Select low pressure sensor.

IMIB 2: Order number 81 38 2 295 937 Follow diagnosis instruction.

Fig 5: Identifying Integrated Measurement Interface Box

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect junction (1) to vacuum reservoir with suitable clamping pliers (2).

Fig 6: Disconnecting Vacuum Reservoir Junction With Clamping Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

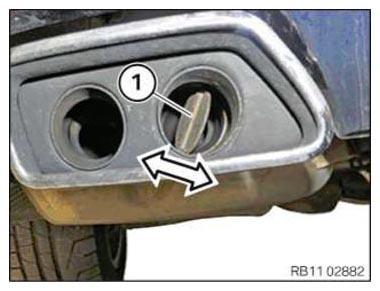

Functional check of exhaust flaps.

Check function of exhaust flap (1) on both rear silencers.

Follow diagnosis instruction.

Fig 7: Checking Exhaust Flap Function

Courtesy of BMW OF NORTH AMERICA, INC.

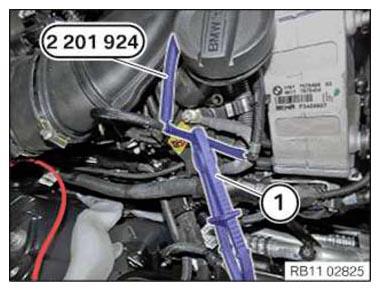

Disconnect vacuum line (1) on spring strut dome.

Connect special tool 81 31 2 357 800 (81 38 2 201 924) to vacuum line (2) without T-connecting piece.

Follow diagnosis instruction.

Illustration shows N55.

Fig 8: Connecting Special Tool (2 201 924) With T-Piece

Courtesy of BMW OF NORTH AMERICA, INC.

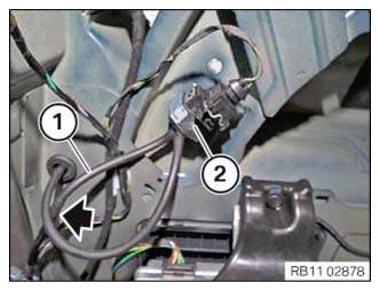

Disconnect vacuum hose (1) to electric changeover valve (2) on connecting element (see arrow).

Fig 9: Identifying Vacuum Hose And Electric Changeover Valve

Courtesy of BMW OF NORTH AMERICA, INC.

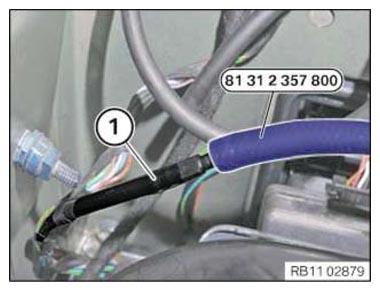

Connect vacuum line (1) with special tool 81 31 2 357 800 (81 38 2 201 924).

Follow diagnosis instruction.

Fig 10: Connecting Vacuum Line With Special Tool (81 31 2 357 800)

Courtesy of BMW OF NORTH AMERICA, INC.

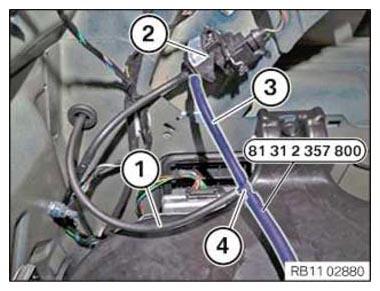

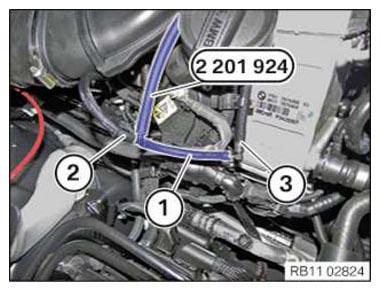

Disconnect vacuum hose (1) of exhaust flap from electric changeover valve (2).

Connect vacuum hose (3) on electric changeover valve (2).

Connect vacuum hose (1) and (3) with special tool 81 31 2 357 800 (81 38 2 201 924) using a T-connecting piece

Follow diagnosis instruction.

Fig 11: Connecting Vacuum Hoses With Special Tool (81 31 2 357 800)

Courtesy of BMW OF NORTH AMERICA, INC.

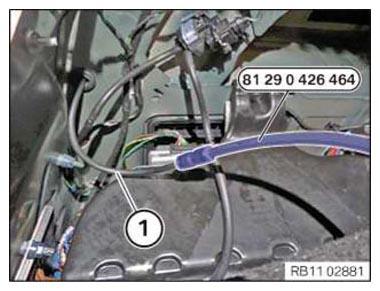

Connect the vacuum hose (1) of the exhaust flaps to the vacuum line (red) of the diagnosis auxiliary device 0 426 464 .

Start troubleshooting with the diagnostic assistance device.

Fig 12: Connecting Vacuum Hose Of Exhaust Flaps To Vacuum Line Of Diagnosis Auxiliary Device

Courtesy of BMW OF NORTH AMERICA, INC.

Check actuation of the wastegate valve controller.

Connect special tool 81 31 2 357 800 (81 38 2 201 924).

Follow diagnosis instruction.

Fig 13: Identifying Integrated Measurement Interface Box

Courtesy of BMW OF NORTH AMERICA, INC.

Check function of wastegate capsule.

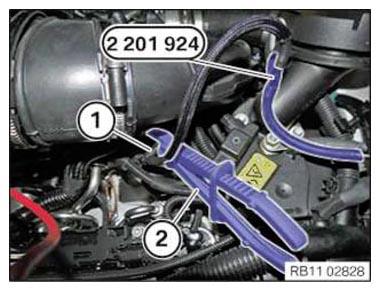

Disconnect the vacuum line with 81 31 2 357 800 (81 38 2 201 924) from the exhaust flaps with suitable clamping pliers (1).

Follow diagnosis instruction.

Fig 14: Disconnecting Vacuum Line From Exhaust Flaps With Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

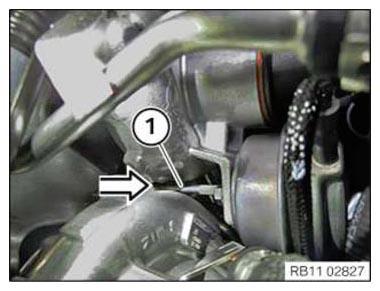

Check function of wastegate capsules.

Vacuum units are activated cyclically on cylinders 1-4 and cylinders 5-8 according to diagnosis instructions.

Check movement of wastegate linkage.

Wastegate flap closes (see arrow).

Follow diagnosis instruction.

Fig 15: Checking Wastegate Capsule Function

Courtesy of BMW OF NORTH AMERICA, INC.

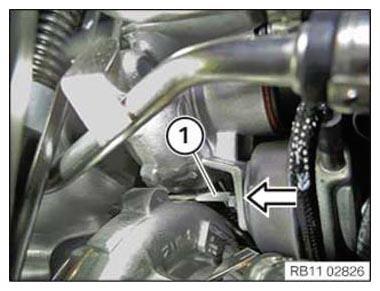

Wastegate capsules

Activation of vacuum units are activated cyclically on cylinders 1-4 and cylinders 5-8.

Check movement of wastegate linkage.

Wastegate flap opens (see arrow).

Follow diagnosis instruction.

Fig 16: Locating Wastegate Flap

Courtesy of BMW OF NORTH AMERICA, INC.

Check wastegate flap on turbocharger:

Flap (1) of vacuum unit (wastegate valve) must be open in depressurized state and closed when there is a vacuum.

Illustration: On removed catalytic converter.

Fig 17: Identifying Vacuum Unit Flap

Courtesy of BMW OF NORTH AMERICA, INC.

Note on pressure converter connections

NOTE:

OUT vacuum connections on the pressure converter cylinders 1-4 and 5-8 can be swapped.

Vacuum hose at connection VAC (= vacuum reservoir).

Vacuum hose at connection OUT (= wastegate actuator vacuum unit).

Illustration shows N63.

Fig 18: Identifying Vacuum Hose Connections

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Remove all special tools.
Reassemble the vehicle.
