51 12 160 Removing and refitting/replacing rear bumper lower trim panel

Necessary preliminary tasks:

Release screws (1) on left/right.

Release catches (2) along marking (3) and remove bumper lower trim panel (4).

Installation note:

Catches (2) must not be damaged or missing.

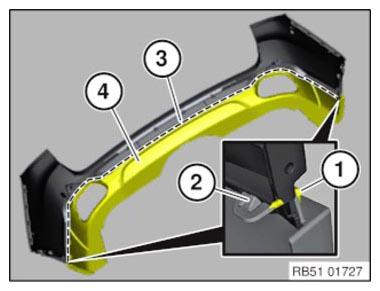

Fig 1: Identifying Bumper Lower Trim Panel, Catches And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
