51 47... Removing and installing/replacing battery cover

Necessary preliminary tasks:

• Open the luggage compartment floor trim panel

Removal:

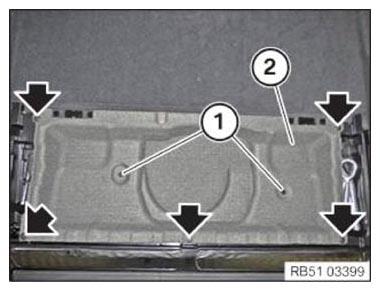

Release screws (1).

Remove expanding rivet.

Lift off battery cover (2).

Installation:

Install battery cover (2).

Tighten down screws (1).

Tightening torque 51 47 17AZ .

Install expanding rivet.

Required follow-up work:

• Close the luggage compartment floor trim panel
