Removing and installing/replacing lower section of steering column shroud (X5 M)
Necessary preliminary tasks:
- Remove TOP SECTION OF STEERING COLUMN CASING .
- Move steering column in "top" and "extended" position.

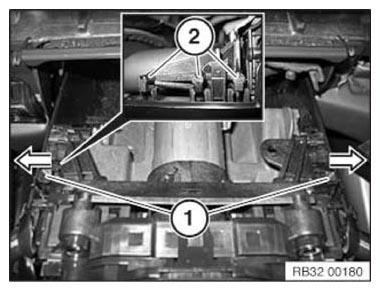

Press retaining lugs (1) outwards a little and unclip steering column shroud downwards.
Installation note:
Align steering column shroud with steering column by means of retaining lugs (2) and press upwards as far as it will go.
Check installation position, correct if necessary.
