Adjusting toe-in on front axle (X5 M)

NOTE: Camber and toe-in influence each other. Adjust the toe-in first in order to simplify the adjustment procedure.

Version with active front steering:

Align steering wheel
Set cumulative steering angle by means of the service function "Carry out initial operation/adjustment for active front steering" to "zero".
If necessary, secure with steering wheel arrester

Version without active steering:

Move steering into straight-ahead driving position by means of markings on cap (1) and steering box (2).

Align steering wheel and secure with steering wheel arrester.

Courtesy of BMW OF NORTH AMERICA, INC.

Clean thread on track rod.

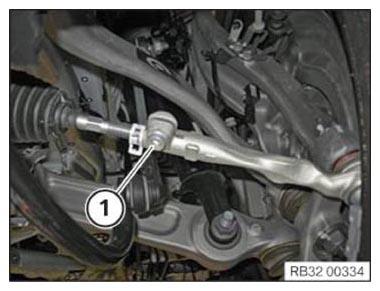

Slacken clamping bolt (1).

Tightening torque 32 21 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

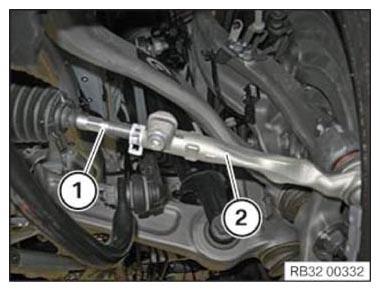

Twist track rod end (1) to adjust toe-in to setpoint value; if necessary, counterhold track rod end (2).

Courtesy of BMW OF NORTH AMERICA, INC.

After Installation note:

Check directional stability of vehicle; if necessary, repeat toe-in adjustment
After adjustment work on the front axle/steering, "EPS start-up" must be carried out.
