Removing and installing/replacing airbag module for driver's knee protection (X5 M)
WARNING:
Read and comply with SAFETY REGULATIONS FOR HANDLING AIRBAG SYSTEM COMPONENTS.
Incorrect handling can activate airbag and cause injury.
Incorrect handling can activate airbag and cause injury.
Attention!
Operations on pyrotechnical devices may only be carried out by authorized experts.
Improper, unauthorized operations may result in serious dangers.
Unauthorized persons are strictly prohibited from performing any operations on this system.
Necessary preliminary tasks:
Removal:

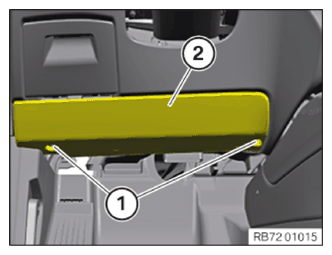

Release screws (1).
Remove airbag module (2) and unlock the PLUG CONNECTION behind it and disconnect.
Installation:
Connect the connector to the airbag module (2).
Replace screws (1).
Parts: Bolts
Position the airbag module (2) and tighten screws (1).
Tightening torque 72 12 3AZ .
Required reworking:
