Replacing evaporator (X5 M)

Special tools required:

• 00 9 030

Necessary preliminary tasks:

• Remove HEATER/AIR CONDITIONER .

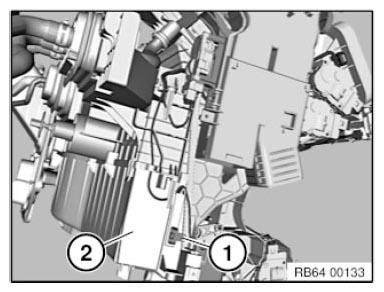

Pull temperature sensor (1) out of housing (2).

Feed out associated cable from housing (2).

Installation note:

Ensure correct cable routing.

Courtesy of BMW OF NORTH AMERICA, INC.

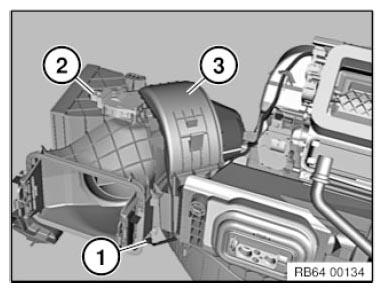

Unlock plug connections (1) and (2) and disconnect.

Feed out associated cable from housing (3).

Installation note:

Ensure correct cable routing.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove expansion valve (2).

Tightening torque 64 53 2AZ .

Installation note:

Ensure that seals are correctly seated.

Replace sealing rings.

Use special tool 00 9 030 to install sealing rings without damaging them.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and carefully remove upper housing section (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove evaporator (1).

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

• EVACUATE AND FILL AIR CONDITIONING SYSTEM .
• Fill and vent COOLING SYSTEM .
