Replacing heat exchanger (X5 M)

Necessary preliminary tasks:

• Remove HEATER .

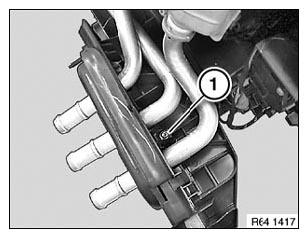

Release screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

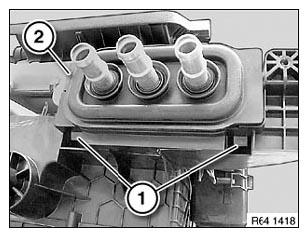

Unclamp retaining tabs (1) and lift out bracket (2).

Courtesy of BMW OF NORTH AMERICA, INC.

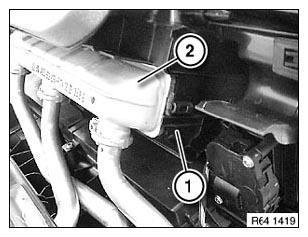

Unclamp retaining lug (1) on both sides and feed out heater core (2).

Installation note:

Make sure heater core (2) is securely seated.

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

• Evacuate and fill A/C SYSTEM .
