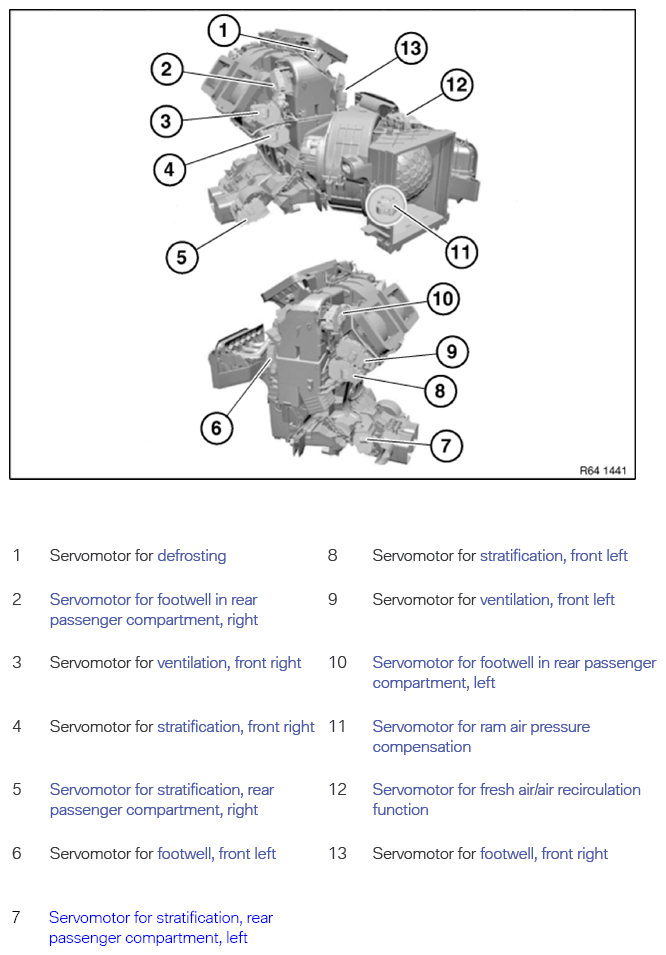

Overview of servomotors for heating and air-conditioning unit (X5 M)

G14939407

Courtesy of BMW OF NORTH AMERICA, INC.
