(Universal BMW transmission support)

23.. Universal BMW transmission support

Special tools required:

NOTE:

The universal transmission support is used from the E60 all-wheel drive vehicle onwards
Suitable for manual transmission and automatic transmission

Attention!

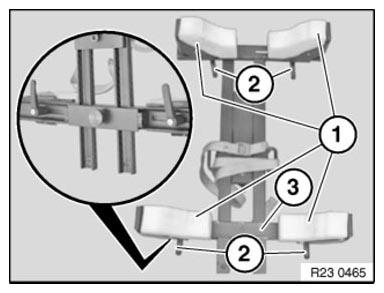

Front and rear supports (1) can be adjusted by screws (2) at the side.

Length of supports (3) of rear supports (1) can be adjusted using screws.

Supports must be adapted to the transmission in the length and width.

Courtesy of BMW OF NORTH AMERICA, INC.

Supporting transmission:

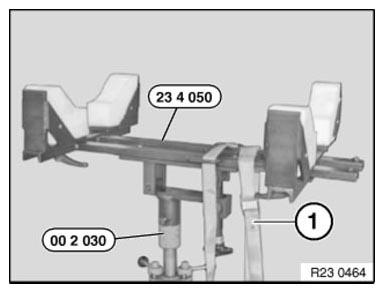

Support the transmission with special tool 23 4 050, 00 2 030.

Attention!

Transmission must be secured with luggage strap (1).

Courtesy of BMW OF NORTH AMERICA, INC.
