(Removing and installing/replacing the intake silencer housing (S63 B44 T 2))
13 71 000 Removing and installing/replacing the intake silencer housing (S63 B44 T 2)
- Switch off ignition.
- Remove acoustic cover
- Remove intake port.
Removal:

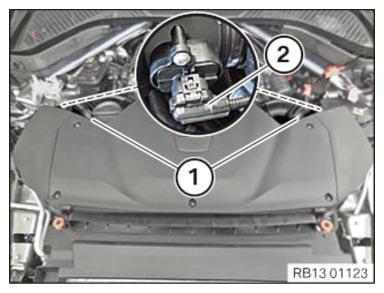

Release clamps (1).
Unlock and pull off connector (2) from hot film air mass meter on left and right.

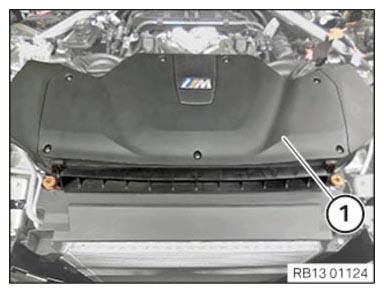

Pull off intake silencer housing (1) upwards from rubber mounts.
Installation:
Connect the intake silencer housing (1) with the clean air pipes and secure to the rubber mounts.
Tighten clamps (1).
Tightening torque 13 71 2AZ .
Connect the connectors (2) to the hot film air mass meter on the left and right.
Connectors (2) must snap audibly into place.
- Install the acoustic cover.
- Install intake port
