(Removing and installing or replacing fresh-air duct)

64 31 053 Removing and installing or replacing fresh-air duct

• Remove microfilter housing

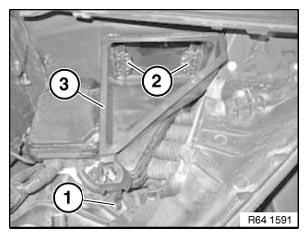

Unclip retaining pin (1).

Release retaining clips (2) and feed out fresh-air duct (3).

Installation note:

Make sure fresh-air duct (3) is securely seated.

Courtesy of BMW OF NORTH AMERICA, INC.

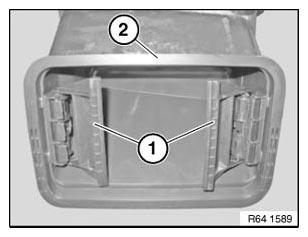

Make sure retaining clips (1) are correctly seated on fresh-air duct (2).

Courtesy of BMW OF NORTH AMERICA, INC.
