(Disconnecting a water hose)
64 0... Disconnecting a water hose
Special tools required:
- 13 3 010
When removing water hoses which are located in the upper area of the cooling system, disconnecting them prevents a large-scale escape of coolant.

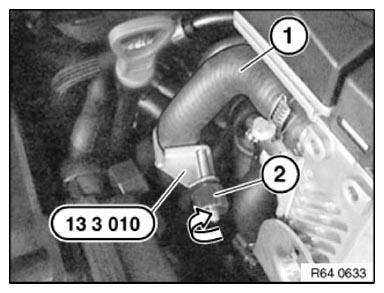

Place special tool 13 3 010 on the coolant hose (1) as depicted.
Disconnect water hose (1) by turning nut (2) in direction of arrow.
